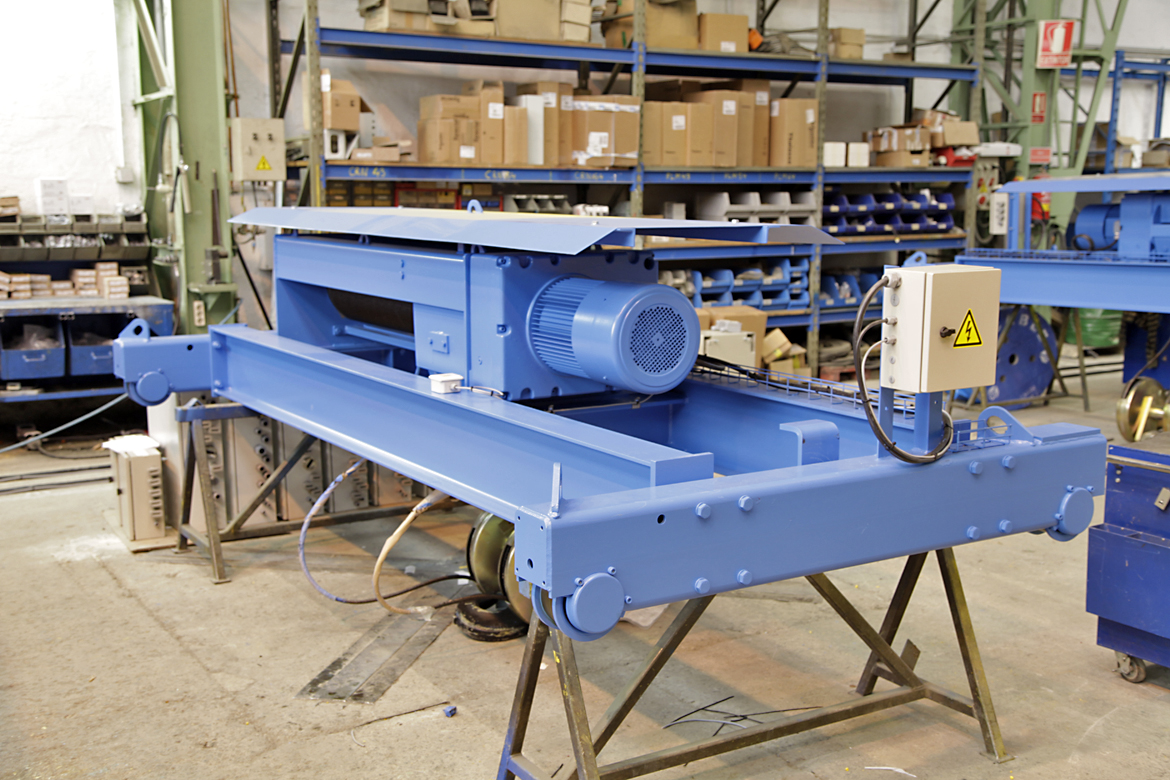

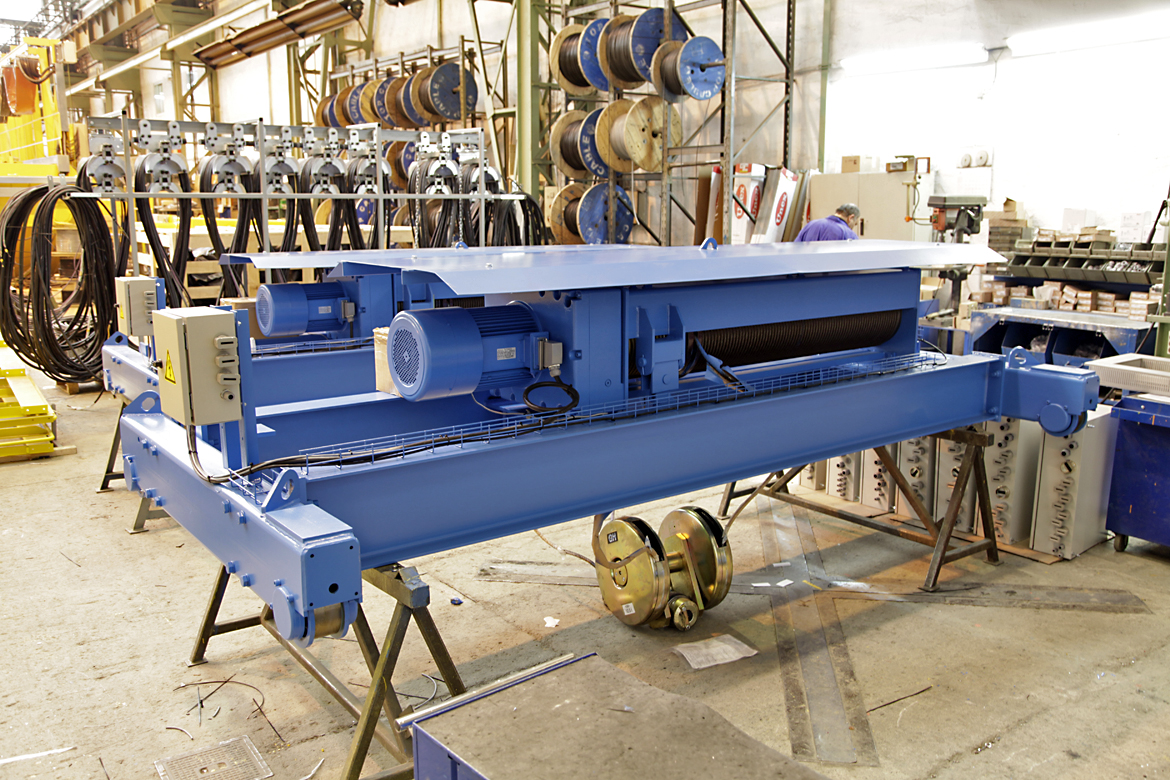

Process of painting two open crabs, with a capabality of of 10 t, for double-girder EOT crane kits, with a 18.35 m span and a lifting height of 37 m
Customer: Budimex, S.A.
Location of the installation: Warsaw (Poland)
It works with an open-crab type hoist, (model GHG-3T, M8 classification). Equipped with command post with ergonomic seats, displays on the seat, two SIEMENS automatons and two complete scanners.
Several hoists ready to be assembled onto double-girder overhead cranes with a capability of 60 t, a 21.5 m span and a lifting height of 18 metres.
Customer: Alstom Wind-Power
Place of installation: Montoir de Bretagne (France)
These overhead cranes are equipped with a main hoist (type GHG, M5 classification), with a capability of 60 t that can lift up to 14.8 m and an auxiliary hoist (type GHE, M6 classification) with a capability of 12.5 t that can lift up to 18.6 m. The crane has a SIEMENS automaton and 500 mm wheels, with volumetric hardening.
The auxiliary hoist is mechanically attached to the main crab but they work independently and the selection is made via radio or push button.
Manufacturing process of several bridges crane with the following characteristics:
Double girder open winch with 80/40t capacity, gearbox GHG-4T on the main elevation with M5 working group and fixed hoist GHF with M4 working group in secondary. The span of the crane is 27.78 m and height 15.2 m elevation. and 13.6 m.
Double girder open winch with 2x125t capacity, motor-gearbox Siemens GHI-4T and M5 working group. The span of the crane is 27.78 m and the lifting height 15m.
The crane maintenance balustrade consists of both beams, platform on one of the beams in the car and maintaining space for gear motors. Further weighing means has the weighing cell with bolt + detector F.d.c. and 3-speed inverter.
It installs with online outlets for unipolar U35/400 Vahle.
Client : Sakana
Installation place : Navarra
