Gantry with rotatory crab and fixed pole

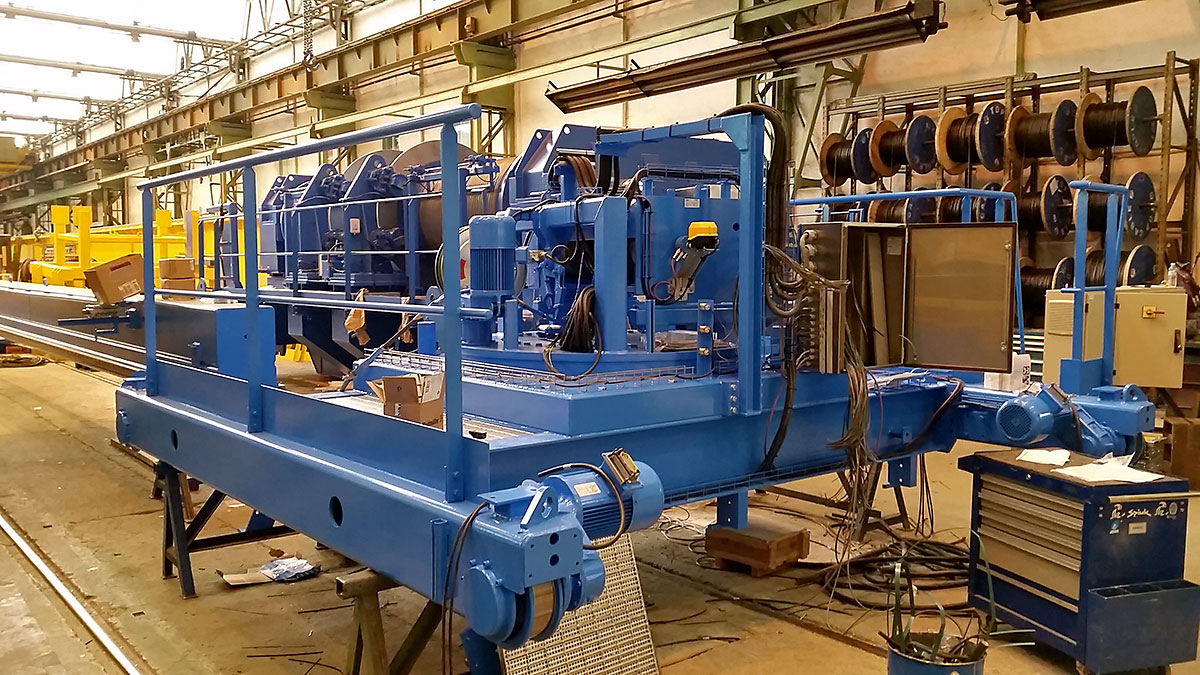

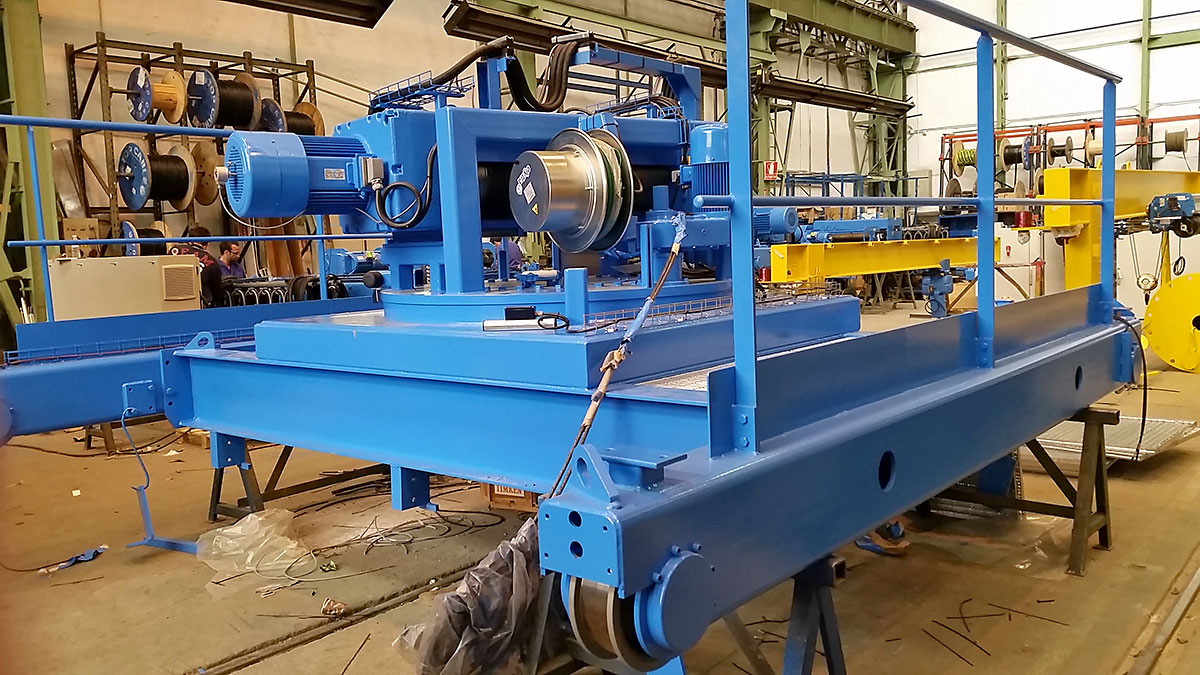

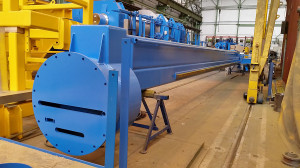

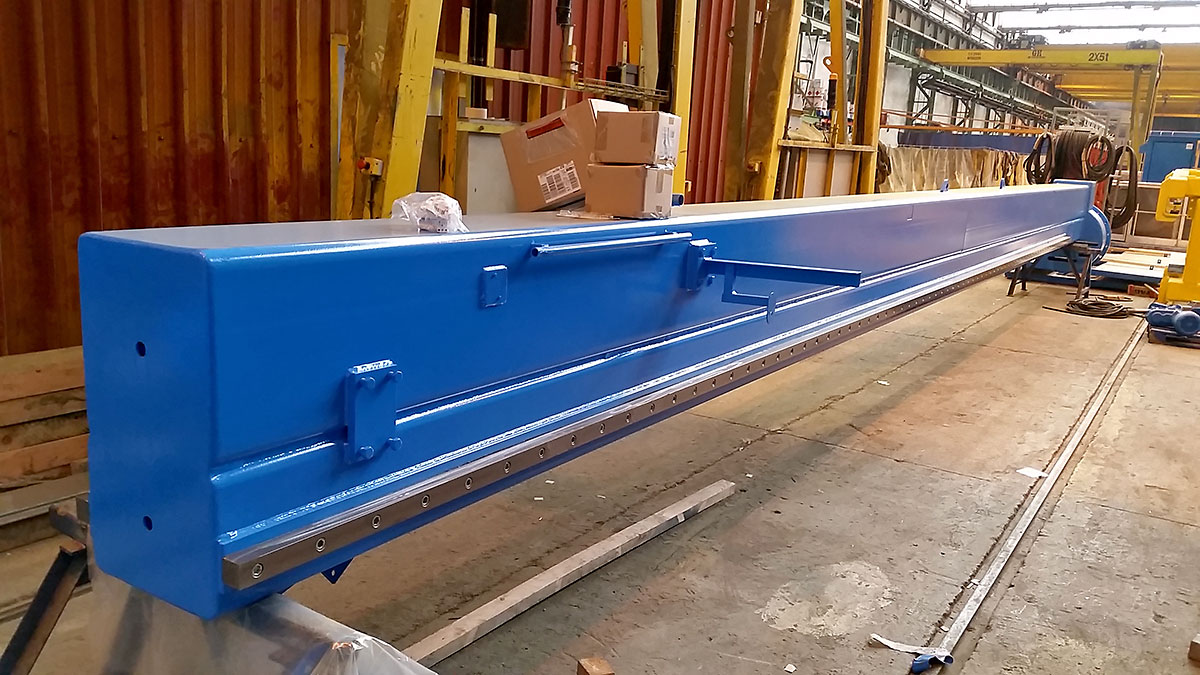

Manufacturing process of a 2.5 t capacity crane with a 20.metre span.

Customer: Port à Sec des Eaux blanches.
Location of the installation: Sete (France).

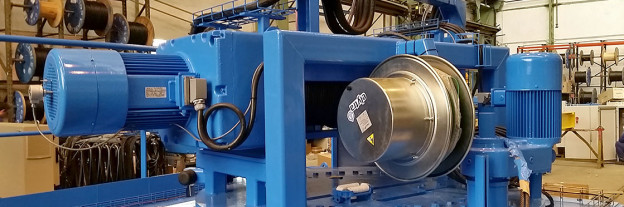

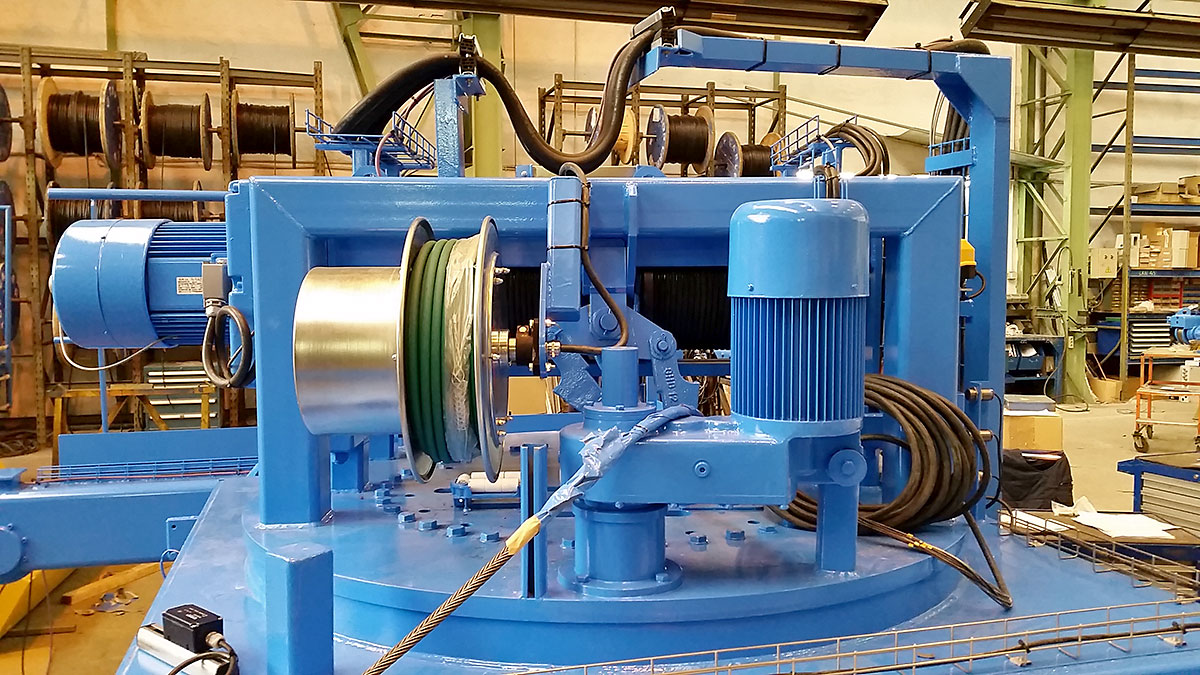

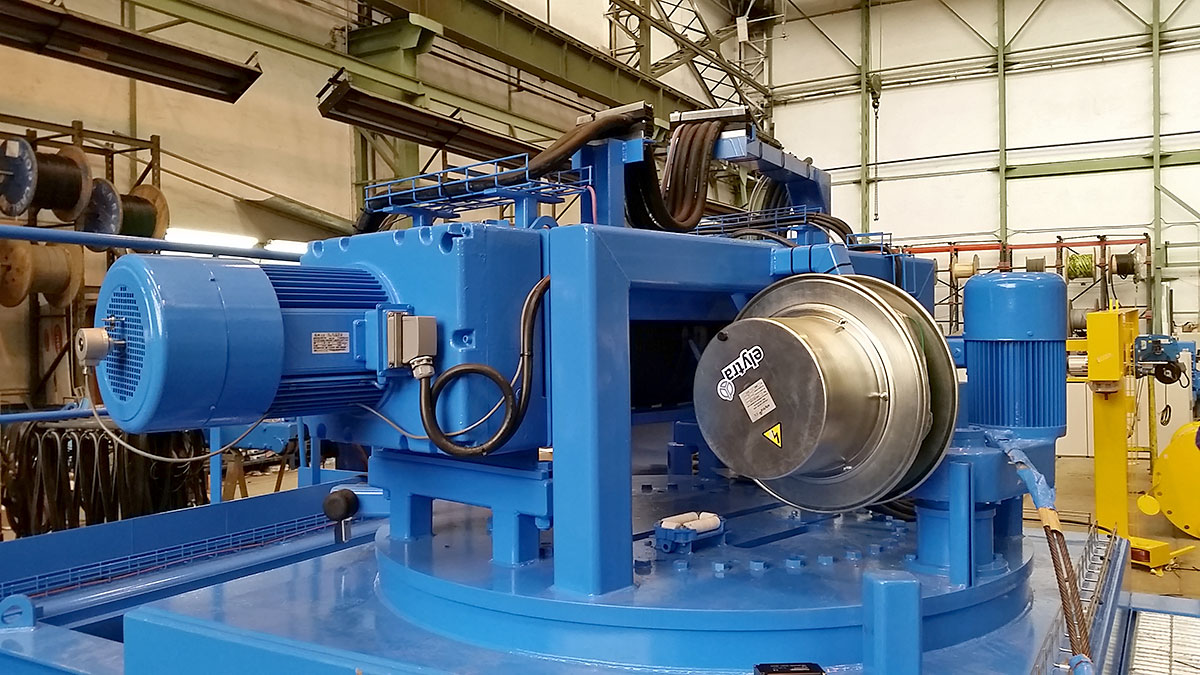

The gantry has an open rotatory GHE crab (M6 group) and a lifting height of 10 metres. It is specially designed for lifting and storing boats.

More information on the web.

20150422_134322 20150422_134533

Portique bipoutre avec chariot rotatif et mât fixe
Processus de fabrication d’un portique bipoutre de capacité 2,5 T et portée 20 m.

Client: Port à Sec des Eaux blanches.
Lieu d’installation (France).

Ce portique est équipé d’un chariot birail rotatif modèle GHE en groupe FEM M6 avec une course de levage de 10 m. Il est spécialement conçu pour la manutention et le magasinage de bateaux de plaisance.

Plus d’informations sur le web.

20150422_134403 20150422_134425 20150422_134459 20150422_134604

Proceso de fabricación de grúa pórtico de 20m. de luz y 2,5t. de capacidad, que cuenta con carro giratorio y mástil fijo.

Cliente: Port à Sec des Eaux blanches.
Lugar de instalación: Sete (Francia).

El pórtico cuenta con un carro abierto giratorio GHE en grupo M6 y una altura de elevación de 10m. y está especialmente diseñado para la elevación y almacenamiento de barcos.

Más información en la web.

Hoist for double-girder overhead cranes for Alstom Wind-Power

Several hoists ready to be assembled onto double-girder overhead cranes with a capability of 60 t, a 21.5 m span and a lifting height of 18 metres.

Customer: Alstom Wind-Power
Place of installation: Montoir de Bretagne (France)

These overhead cranes are equipped with a main hoist (type GHG, M5 classification), with a capability of 60 t that can lift up to 14.8 m and an auxiliary hoist (type GHE, M6 classification) with a capability of 12.5 t that can lift up to 18.6 m. The crane has a SIEMENS automaton and 500 mm wheels, with volumetric hardening.

The auxiliary hoist is mechanically attached to the main crab but they work independently and the selection is made via radio or push button.

_MG_0668  _MG_0670 Sigue leyendo
