Double girder bridge crane with open winch for Voith Hydro

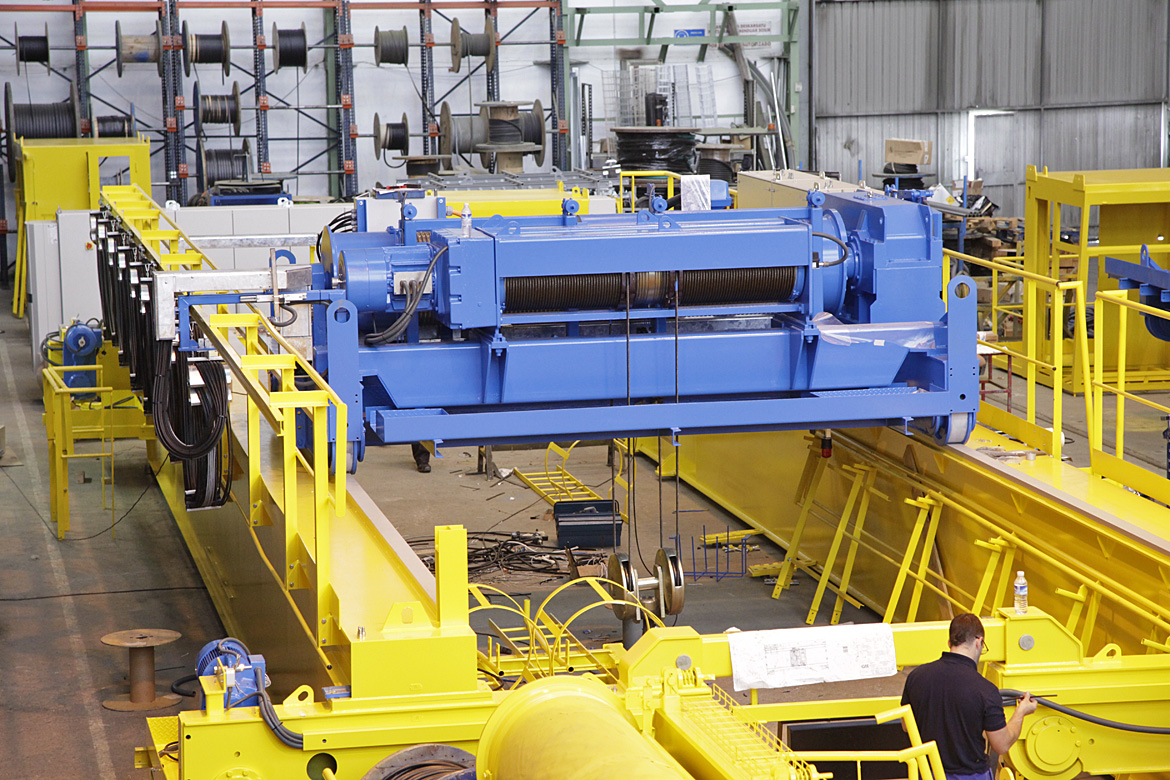

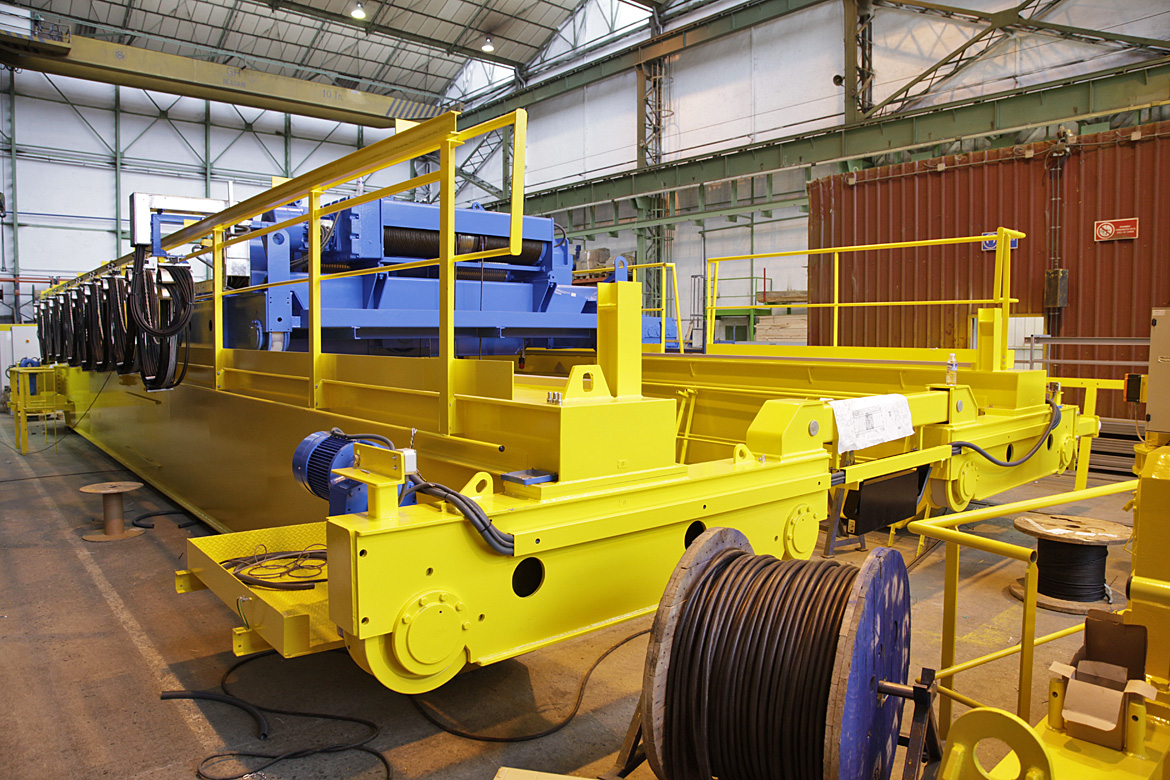

Manufacturing process for a double girder bridge crane with 95/15 tns open winch capacity, 15,6 M span and 17 M of lifting hight.

Client : VOITH HYDRO GmbH & CO
Installation place : Germany

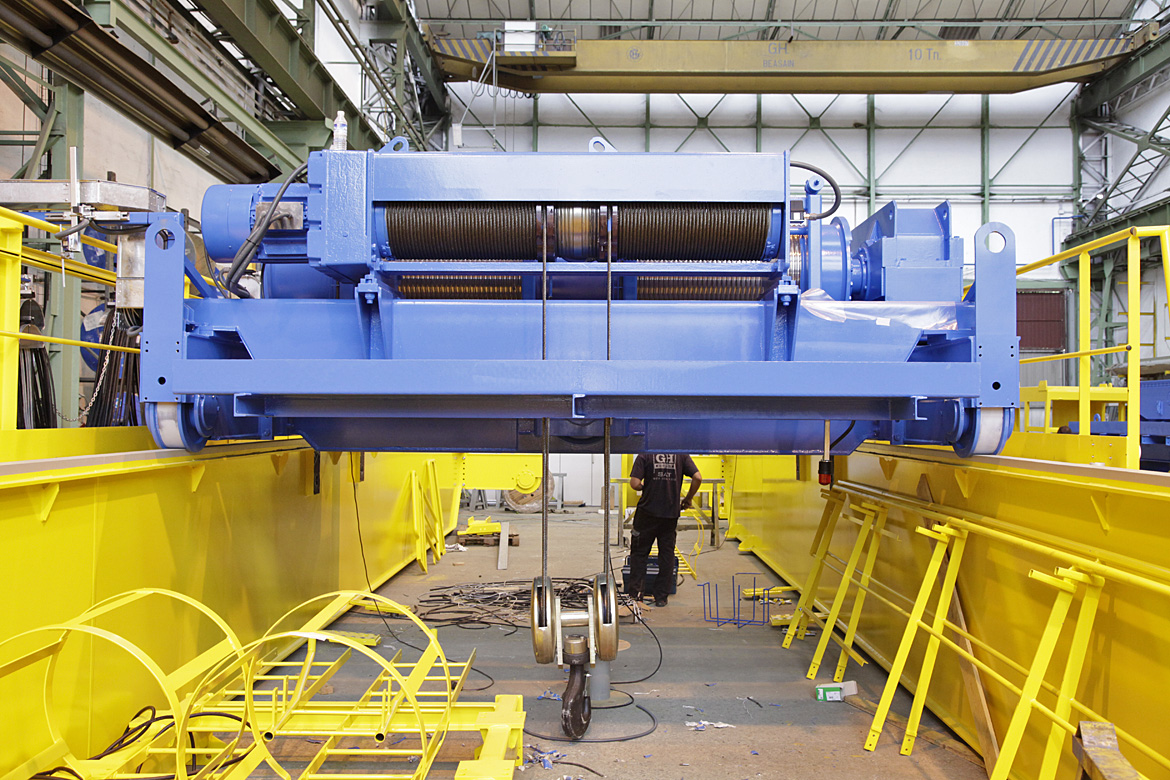

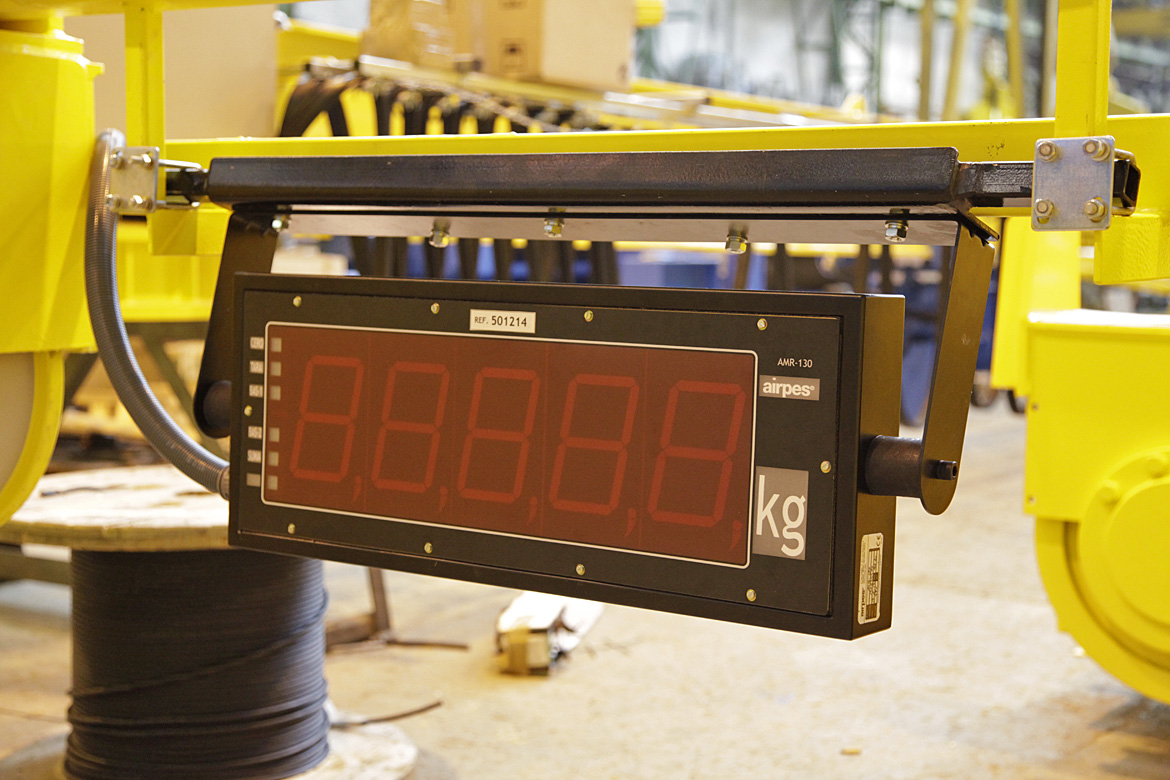

The crane allow a distance of 17 m lifting elevation, and it go with bolt load cell with display, as shown in he photos.

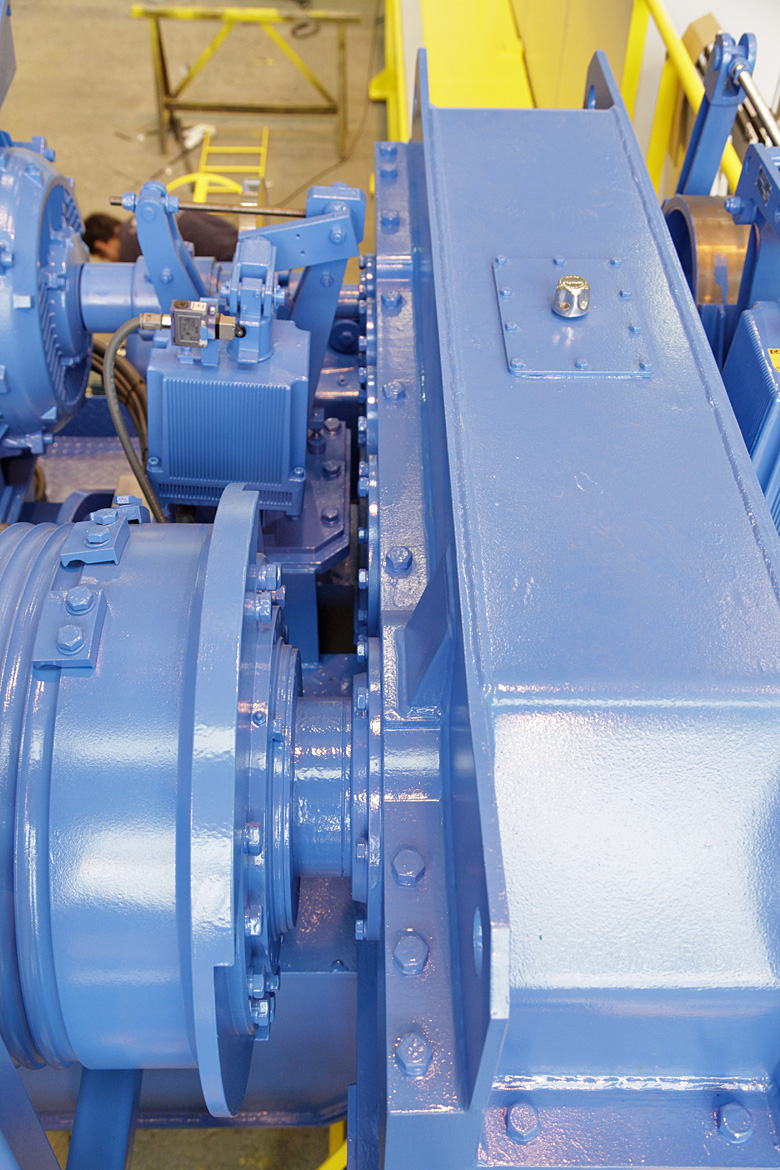

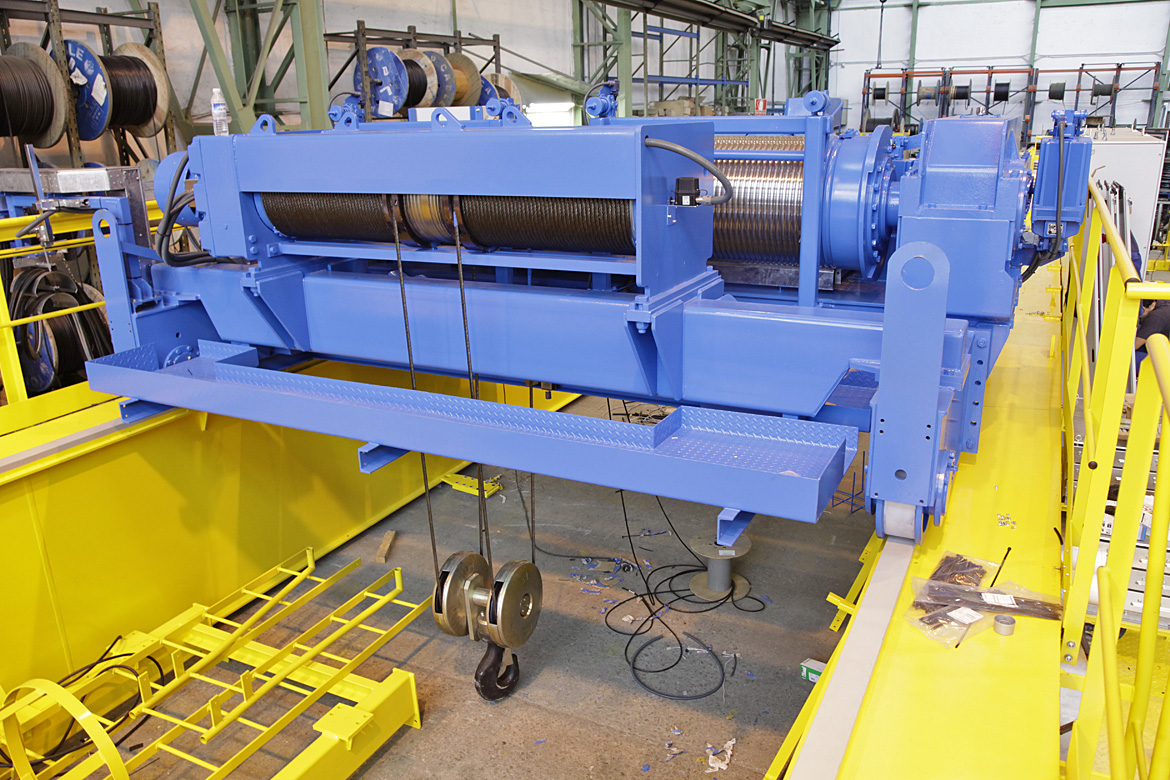

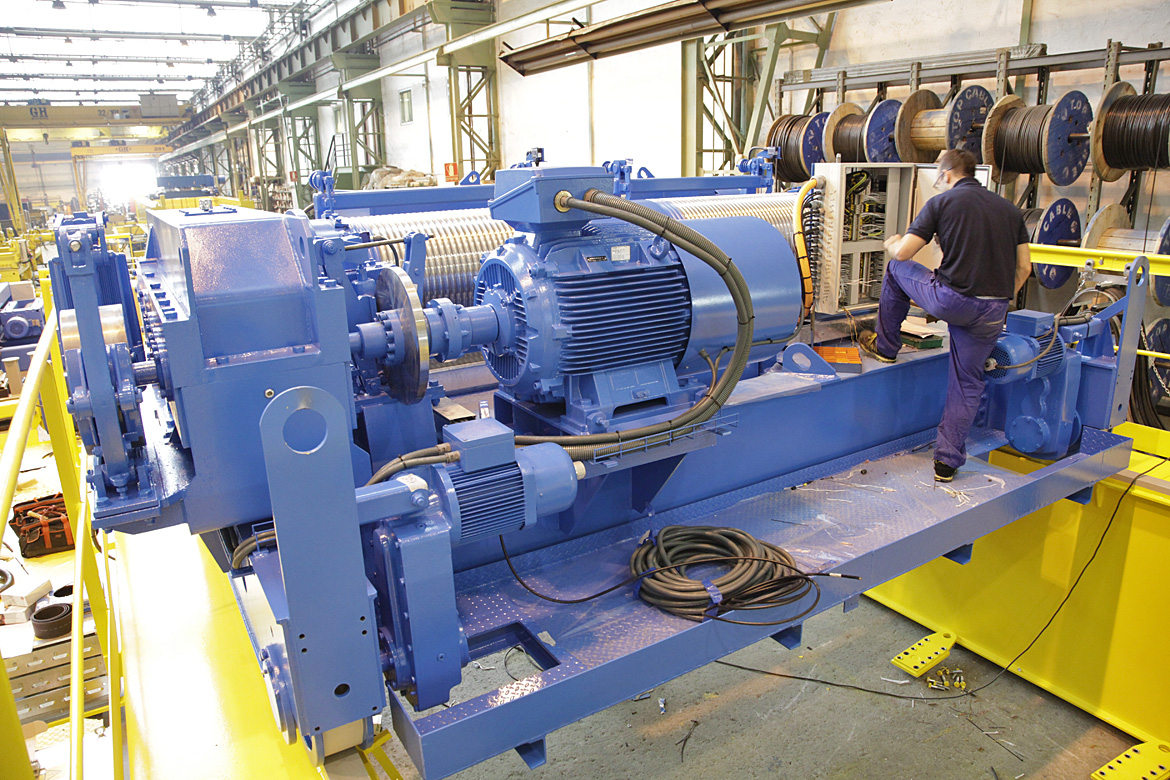

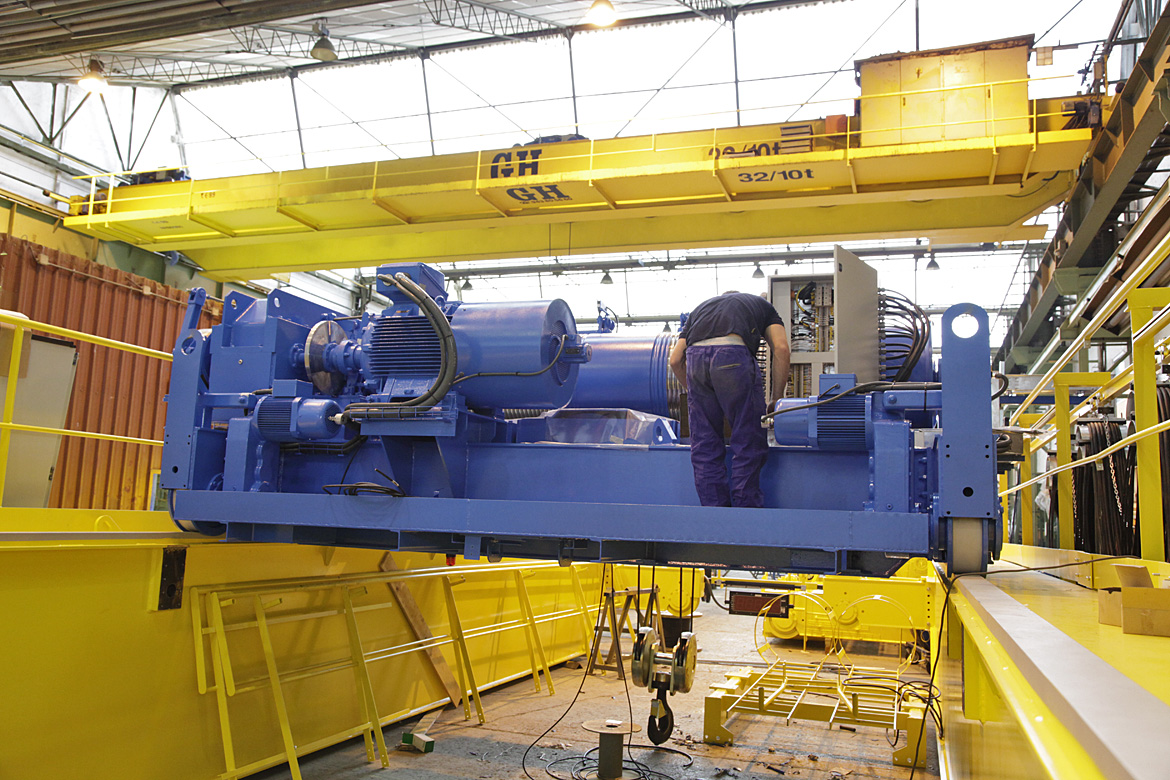

It also has platform in the carriage and small balconies in gearbox motors.
The auxiliary hoist is GHF single girder with 26.3 m travelling cable go with it.

_MG_8225 _MG_8226 _MG_8231 _MG_8242 _MG_8247 _MG_8251_MG_8259 _MG_8269 _MG_8276_MG_8253 _MG_8261 _MG_8264 _MG_8224

Proceso de fabricación de grúa puente birraíl con carro abierto de 95/15t capacidad, 15,6m de luz y una altura de elevación de 17m.

Cliente: Voith Hydro GmbH & Co
Lugar de instalación: Alemania

Esta grúa puente permite un recorrido de elevación de 17m, y dispone de célula de pesaje de bulón con display, tal y como se aprecia en las fotos.

Cuenta además con plataforma en el carro y balconcillos en los motorreductores.
El polipasto auxiliar es monorraíl GHF y cuenta con 26,3m de recorrido de cable.
